Attach Your Camera to a Telescope
It’s a simple as this, if you want to take pictures through your telescope, you need to properly attach your camera to it. Learning how to attach your camera to a telescope is one of the first steps needed to enter the world of astrophotography.
Whether you plan to photograph the planets using the eyepiece projection method or to take deep-sky images of galaxies and nebulae in space using a prime-focus adapter, attaching your camera to the telescope must be accomplished first.
Attaching a DSLR camera (with an internal filter) to a refractor telescope.

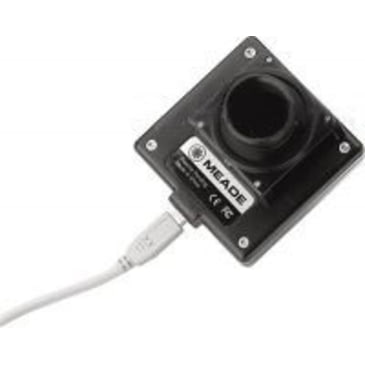

DSI Not Recognized by Computer - posted in DSI CCD Cameras: My DSI pro won't install on my new laptop. (works fine on the old one). Running XP Home SP3 with dotnet 3.0. Installed Meade software by download but the Windows new hardware wizard can't find the DSI driver, all it sees is a '? (I have tried pointing the wizard with no success). Are there any driver downloads available. Had a meade dsi 2 myself a while ago and working from memory the drivers are not easy to find, you need to download the envisage software then plug in the camera and the drivers are in the program files of envisage, not easy to find but i think there in the c / programs / meade envisage files or something like that. The meade usb to serial cable provides the capability of using the usb port on a personal computer to connect to a. Had a meade dsi 2 myself a while ago and working from memory the drivers are not easy to find, you need to download the envisage software then plug in the camera and the drivers are in the program files of envisage, not easy to find but i think there in the c / programs / meade. Attaching a DSLR camera (with an internal filter) to a refractor telescope. There are plenty of astrophotography cameras available, but this article focuses on connecting a DSLR camera to a telescope. A DSLR camera is an excellent way to start capturing deep sky astrophotography images of galaxies, nebulae, and star clusters from home. MEADE BINOCULARS WITH CAMERA DRIVERS DOWNLOAD (2020). Meade ds-2102at-tc refractor with autostar, 100mm, 110mm. Water resistant binoculars digital camera, meade instruments binocular, download meade binocular digital camera, make offer meade capture view, xp vista operating systems.
There are plenty of astrophotography cameras available, but this article focuses on connecting a DSLR camera to a telescope. A DSLR camera is an excellent way to start capturing deep sky astrophotography images of galaxies, nebulae, and star clusters from home.
How to Attach Your Camera to a Telescope
A DSLR camera can be attached to your telescope using a T-Ring that locks on to the camera body like a lens, and an adapter that threads on to the T-Ring. The prime-focus adapter is inserted into the focus tube of the telescope just like an eyepiece.
The T-Ring must match the lens mount design of your camera so that it can properly lock on to it. Then, a threaded adapter can be fastened to your camera and T-Ring with either a 1.25″ or 2″ barrel (nose-piece).
A SVBONY T2 T-Ring and 1.25″ Adapter for Canon EOS Standard EF Lens Mounts.
The adapter must be locked into place inside of the telescope focus drawtube to avoid any camera shake or movement. The eyepiece opening of your telescope should have locking screws that were designed to hold your eyepiece or camera in place.
Make sure that your camera is securely fastened into the focus tube. The last thing you would want is for it to fall out when your telescope is pointed upwards. The heavier your camera and accessories (imaging payload), the more demand it will put on your focuser draw tube.
My DSLR camera attached to a William Optics Zenithstar 73 refractor.
Some telescope designs (especially ones that were designed for astrophotography), will allow you to thread the camera directly to the telescope using your T-Ring. This is the optimal configuration for deep sky astrophotography as it offers the highest level of security.
If your goals are to capture deep-sky astrophotography images, you’ll want to use the prime-focus method that does not use an eyepiece or Barlow lens in front of the camera. Yes, this means that you will be using the fixed native focal length (magnification) of your telescope to photograph all objects.
For higher magnification photography of smaller targets such as the planets or the Moon, the eyepiece projection method is best. This method involves placing an eyepiece between the camera body and the telescope using an adapter tube (eyepiece projection adapter).
An eyepiece projection adapter for high magnification views of solar system objects.
It is common for amateur astrophotographers to thread the camera and T-Ring directly to a dedicated field flattener or reducer. This accessory was designed to “flatten” the field of view from the telescope, or reduce the magnification.
This accessory has additional glass optical elements inside to compliment the design of a refractor telescope. A flattener/reducer will usually have a diameter of 2″, and can be inserted into the eyepiece opening of the focuser drawtube.
First, remove the camera lens that is currently mounted to the body of your DSLR. A T-Ring that has been designed to fit your camera body will thread and lock on to the camera exactly as a lens does.
Your T-Ring may even have a red indicator on it that you can line up with the one on your camera body.
The T-Ring should “click” into place when it has properly locked into place. Now, you will need to thread the T-Ring adapter on to the T-Ring that provides a useful barrel to insert into your telescope focuser.
1.25″ and 2″ are the standard sizes of T-Ring adapter nose-pieces, and the one you choose will depend on the openings available to you on your telescope focuser.
Most telescopes have an opening for 2″ eyepieces (or T-Ring adapters) and a 1.25″ adapter for smaller eyepieces or 1.25″ barrels.
Here are some T-Ring adapters for popular DSLR cameras:
Make sure to get the right T-Ring and Adapter for your specific camera body.
Once your camera is attached, you can then utilize the native focal length of your telescope in place of a camera lens. So, if your telescope has a focal length of 800mm, it will now act like an 800mm camera lens for astrophotography.
If you are trying to figure out the exact magnification you can expect with your camera and telescope, don’t forget to include the 1.6X crop factor that comes into play when using an APS-C sized sensor. Full-frame DSLR cameras will utilize the full focal length of your telescope.
When you are ready to take pictures with your camera attached to the telescope, it is useful to use a remote shutter release cable. This accessory allows you to capture images without touching the camera and even set a sequence of images to fire off on their own. (this is the one I use).
Download Meade Cameras Download
A basic deep-sky astrophotography setup using a William Optics Z61 telescope and DSLR camera.
Where to Put Camera Filters
Unlike the daytime photography world where filters are often threaded to the objective of the camera lens, in astronomy, filters are placed at the base of the telescope. To use a filter with your camera and telescope, you have a few convenient options to choose from.
- Clip-in filters that sit inside of the camera body
- Internal threaded filters that sit inside of your camera adapter
Clip-in style filters like the one shown below are useful when using your camera with either a telescope or camera lens. They completely cover the camera sensor of your DSLR, while allowing a T-Ring adapter or camera lens to be mounted in front.
Using a clip-in filter with a DSLR camera for astrophotography.
A 2″ (48mm) thread filter is another great option, and they can be fastened to a number of places in front of your camera. One benefit 48mm round mounted filters have over the clip-in style is the option of using them with any camera you own, not just a particular DSLR camera body.
I often thread a 2″ light pollution filter to the end of my field flattener/reducer or adapter. Some flatteners, such as the Flat73, include a spot inside to screw in the filter.
A 48mm light pollution filter threaded to the inside of my 2″ field flattener.
You do not need to use a filter to capture astrophotography images using a camera and telescope, but they certainly help when taking pictures in areas of heavy light pollution. For example, I captured the following images from my Bortle Scale Class 8 backyard sky using an Optolong L-Pro filter with a Canon EOS 5D Mark II DSLR.
When taking images from the city, it does not take long to overexpose your images due to the extreme glow of artificial lights.
The Pleiades star cluster captured using a 48mm light pollution filter inside of the camera adapter.
You may be wondering why anyone would attach their camera to a telescope in the first place? If you already own a telephoto lens with a focal length of 300mm or more, you may want to use your camera lens for astrophotography before attempting to connect it to a telescope.
Deep sky astrophotography requires that you take long exposure images of the night sky. To accomplish this, you will need to use a computerized equatorial mount that matches the apparent rotation of the night sky.
A telescope is constructed differently than a camera lens. Besides the lack of autofocus and image stabilization (features that are rarely used in astrophotography), there are a few advantages and disadvantages between a telescope and a camera lens.
Advantages of using a Telescope over a Camera Lens
This conversation often creates a lengthy debate about which optical instrument is best for astrophotography. In reality, both telescopes and camera lenses have their place in astrophotography. There are strengths and weaknesses to both options.
- Longer focal lengths (magnification) at an affordable price
- Dedicated precision focusers designed to focus on stars
- Include dovetail mounting rails for a wide variety of telescope mounts
- Convenient mounting options for a guide scope (autoguiding) and accessories
- Designed for astrophotography (internal baffles, dew shields, etc.)
Advantages of Using a Camera Lens over a Telescope
- Attach directly to your DSLR camera body without additional adapters
- High-quality lens construction and design
- Lenses available with extremely fast optics of F/4 and below
- Compact, lightweight, and portable construction
If you wish to capture images of the Moon, solar system, or deep-sky objects in space, it’s worth taking the time to understand how to attach your camera to a telescope. A telescope is a fantastic optical instrument for photography and can provide you with a lifetime of enjoyment and opportunity.
Connecting your camera to a telescope is often the first step towards your first jaw-dropping image of a deep sky nebula or galaxy, which is why I find this stage of the process so exciting. I hope this guide has given you a better understanding of what is needed for astrophotography, and that you continue your progress one step at a time.
